Revic Radikl RS36b 6-36x56i - RX2-MOA Illuminated FFP Reticle - Smart Riflescope

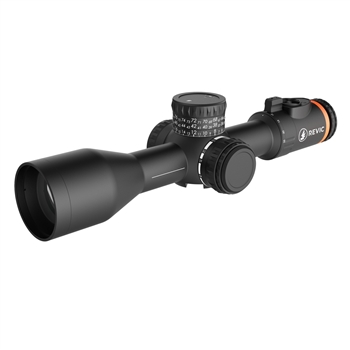

Revic Radikl RS36b 6-36x56i - RX2-MOA Illuminated FFP Reticle - Smart Riflescope

Alternative Views
Tech Specs at a Glance:

Magnification: 6-36x
Objective Diameter: 56mm
Tube Diameter: 34mm
Eye Relief: 3.07" - 3.47"
Exit Pupil Diameter: 1.6mm
Parallax Adjustment: 10 yards to infinity
FOV at 100 yards: 20.3 ft. - 3.4 ft.
Elevation Adjustment: 100 MOA
Windage Adjustment: 40 MOA
Length: 15.1"
Weight: 42 oz.
Price: $5,550.00

Quantity Available:(Out of Stock)


None:

Description

Revic Radikl RS36b 6-36x56i - RX2-MOA Illuminated FFP Reticle - Smart Riflescope:

The Radikl combines premium optics and next generation Revic ballistic technology into a deadly hunting weight package. Smaller and smarter than the competition, the Radikl brings serious long range hunting capability into a seriously compact smart scope.

2ND GENERATION. The Radikl features the second generation of the Revic Digital Werkstream for simplifying the complexity of shooting at extreme distances. How simple? Its as easy as dialing the elevation turret to display the known target distance! We have built the most complex electro-optics hunting product in the world with four core systems that work together to provide rapid solutions perfectly adapted to the way we hunt!

The RS36b features the new RX2 First Focal Plane reticle with a holdover grid layout. Subtension spacing initiates at 1 MOA, but graduates into 2 MOA in the bottom half of the grid. This provides unique utility, and the right amount of detail where you need it. The grid layout delivers quick holdover correction and efficient target transitions; all while increasing the speed and simplicity of follow-up shots.

Max Capability
Our first generation smart scope was a huge success, but hunters wanted a more streamlined optic. The RS36b is a significant reduction in size and weight from its predecessor, coming in at compact 15.1" and 42oz. The turrets are fast and repeatable, and class leading adjustment range lets you reach any target.

No Power No Problem
The RS36b wisely integrates our BDR system. You'll always have a low-cost backup ballistic solution in the worst-case scenario. Order specific BDRs for your environmental and ballistic parameters and enjoy rapid, tool-free installation with no risk of losing your zero.

Three Turn Turret
Taking advantage of the class-leading 1000 MOA of elevation adjustment, the turret allows for 30 MOA of travel per turn and is marked for 3 revolutions. A mechanical zero-stop brings you right back to zero after the shot.

Track Your Travel
The RS36b's THREE TURN TURRET boasts a massive 140 minutes of elevation travel. Our exclusive revolution indicator allows you to quickly and confidently track your travel on the elevation turret.

8 Real Time Sensors:
  • MEMS Silicone Chamber Pressure Sensor 1. Error approximately equivalent to 1 foot of elevation
  • MEMS Silicone Chamber Pressure Sensor 2. Error approximately equivalent to 1 foot of elevation
  • Silicone Diode based Thermistor type Temperature Sensor 1. 0.2 Celsius error sampled system temperature
  • Silicon Diode based Thermistor type Temperature Sensor 2. 0.2 Celsius error for sampled system temperature
  • MEMS 3-axis Inclined and Cant Sensor 1
  • MEMS 3-axis Inclined and Cant Sensor 2. +75 to -75 degree usable range. 0.3 degree error in the range of +/- 20 degrees.
  • 3-axis Accelerometer with 3-axis magnetometer combined to measure compass heading
  • Expected error of less than +/- 10 degrees azimuth
  • Turret Position Encoder uses two hall sensors with resolution of 4096 positions in a single turn combined with our proprietary and patented systems to guarantee a position accuracy of less than 1/2 MOA

Features & Design:
  • Onboard Environmental Sensor Suite
  • Micro OLED Data Display
  • Digital Dial Encoder System
  • 3 - Turn Turret
  • BDR Compatibility
  • Revolution Indicator
  • Mechanical Zero-Stop
  • Adjustable Ambi-Throw Lever
  • Capped Windage
  • FFP RX2 Reticle
  • Illumination
  • Bluetooth Connectivity

Technical Specifications:
  • Magnification: 6-36x
  • Objective Diameter: 56mm
  • Tube Diameter: 34mm
  • Eye Relief: 3.07" - 3.47"
  • Exit Pupil Diameter: 1.6mm
  • Parallax Adjustment: 10 yards to infinity
  • Focal Plane: First
  • FOV at 100 yards: 20.3 ft. - 3.4 ft.
  • Adjustment Per Revolution: 30 MOA / 12 MIL
  • Elevation Adjustment Range: 100 MOA / 29.1 MIL
  • Windage Adjustment Range: 40 MOA / 11.6 MIL
  • Reticle Illumination: 9 Level
  • Reticle Colour: Red, Yellow, Blue, Green
  • Eyepiece Length: 3.7"
  • Mounting Length: 6.3125"
  • Length: 15.1"
  • Weight: 42 oz.
