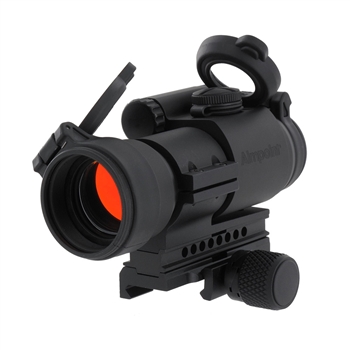

Aimpoint - Patrol Rifle Optic - 2 MoA Red Dot Reflex Sight - 12841
Aimpoint - Patrol Rifle Optic - 2 MoA Red Dot Reflex Sight - 12841

Alternative Views


Tech Specs at a Glance:

Magnification: 1x
Tube Diameter: 30 mm
Parallax Adjustment: None
Sight Window: 38 mm
Night Vision Device Compatible: Yes
Weight: 0.725 lbs.
Dimensions (LxWxH): 5.20" x 2.80" x 3.20"
Eye Relief: Unlimited
Material: High Strength Aluminum
Finish: Semi-Matte Anodized finish
Battery Life: 30,000 Hours
Battery Type: 1/3N, 3V, Lithium
Battery Size: DL1/3N

Price: $799.95

Quantity Available:1


Magnification:


Description

Aimpoint - Patrol Rifle Optic - 2 MoA Red Dot Reflex Sight - 12841:

The Aimpoint PRO (Patrol Rifle Optic) was designed with the input of current and former professionals to create the most dynamic Red Dot sight available. Featuring band-pass lens coating, the PRO is compatible with every generation of night vision devices and provides a crystal clear 1x image for quick target acquisition in close quarter situations. The modular QRP2 mount securely attaches to standard picatinny rails and includes a removable spacer that provides optimal height for co-witness with iron sights on carbine style weapons. Additionally, the QRP2 incorporates a torque limiting knob to completely eliminate over tightening. You won't need to worry about turning the battery on and off with the PRO. The 3-year battery life allows you to turn the unit on out of the box and leave it on for an always ready sight. Other features include a see through ocular lens cap and standard objective flip-up lens cap that are both recessed to prevent impact damage, a rugged 30mm tube, threaded objective bell for use of ARD (Anti-Reflective Device), 4 Night vision settings and 6 daylight settings, adjustment cap retainers to prevent them from being lost in the field, and a ten year personal use warranty. Note: These no longer have the battery cap retainer strap.

Features & Design:
  • 2 MOA dot size
  • 30,000 hours (over 3 years) of constant operation
  • 4 night vision compatible settings and 6 daylight settings
  • Weight 220 g (7.80 oz.) sight only, 330 g (11.60 oz.) with mount
  • Submersible to 45 meters (150 feet)
  • Height of Optical Axis 39 mm (1.5 in) measured from top surface of mechanical interface
  • Front lens opening is threaded for addition of killFlash anti-reflective device2 MOA dot size
  • Includes: QRP2 Mount, Base & Top Ring, Standard Spacer, Flip-up Lens Covers, DL1/3N Battery, Allen Key

Technical Features:
  • Magnification: 1x
  • Tube Diameter: 30 mm
  • Parallax Adjustment: None
  • Dot Size: 2 MoA
  • Sight Window: 38 mm
  • Night Vision Device Compatible: Yes
  • Weight: 0.725 lbs.
  • Dimensions (LxWxH): 5.20" x 2.80" x 3.20"
  • Light Transmission: 60.0%
  • Eye Relief: Unlimited
  • Red Dot Size: 2 MoA
  • Water Proof: Yes, up to 150 ft.
  • Fog & Humidity Proof: Yes
  • Vibration Proof: Yes, up to 150 Hz
  • Shock Proof: Yes
  • Laser Emissions: None
  • Operating Temperature: -45.0 to 71.0 C / -49.0 to 160.0 F
  • Material: High Strength Aluminum
  • Finish: Semi-Matte Anodized finish
  • Battery Life: 30,000 Hours
  • Battery Type: 1/3N, 3V, Lithium
  • Battery Size: DL1/3N
  • Power Switch: Rotary Switch
  • Daylight Settings: 6.0
