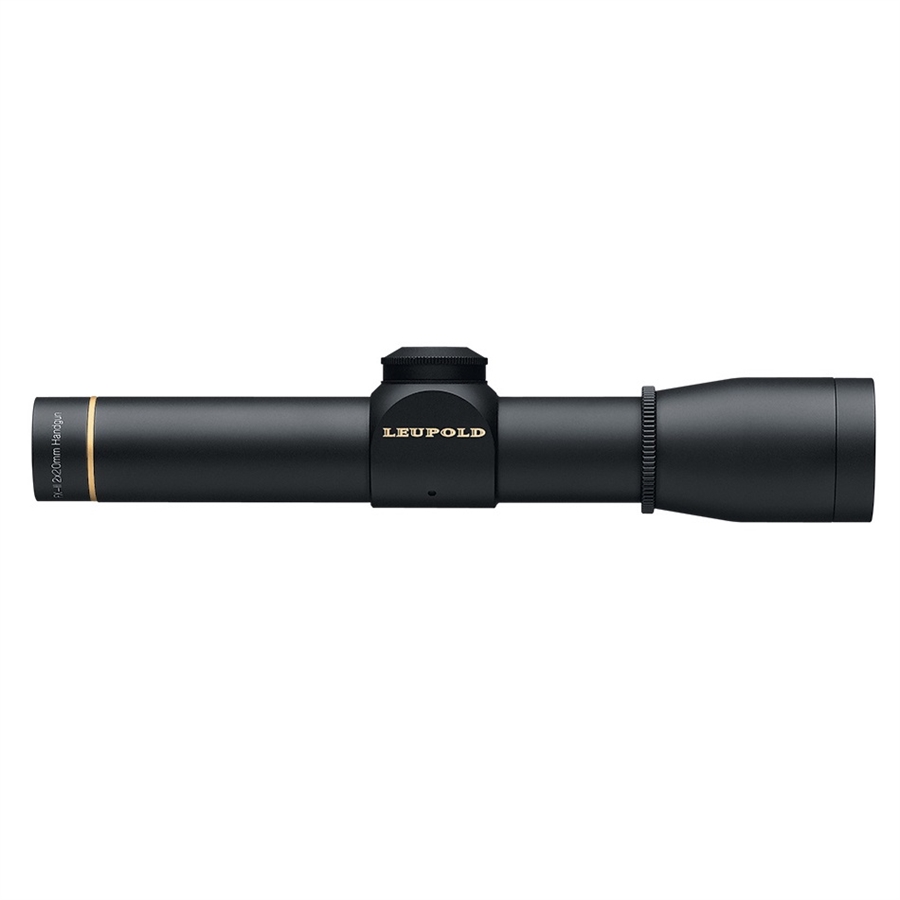

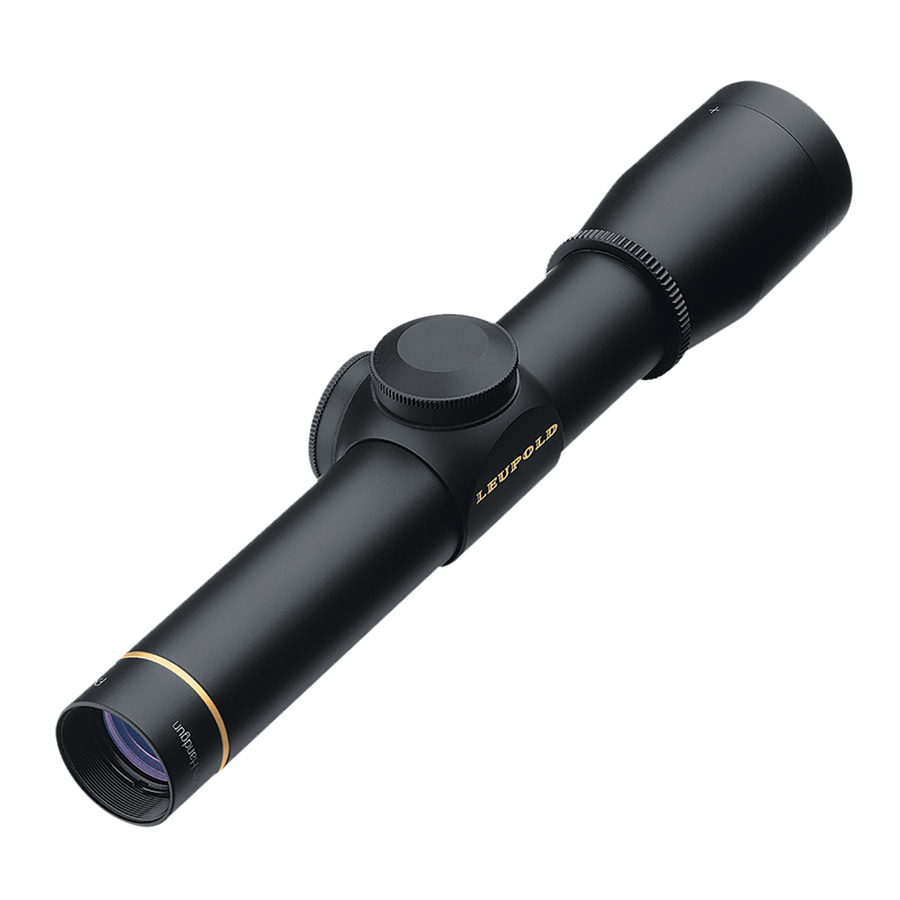

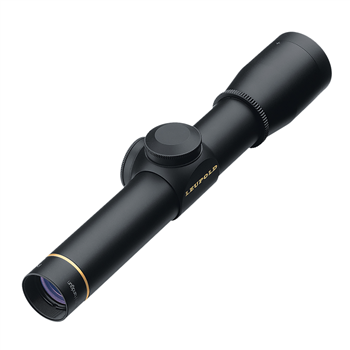

Leupold FX-II 2x20 - Matte - Duplex :
Leupold Handgun scopes deliver the extended eye relief, generous eyebox, and the bright, crystal-clear optics you need to shoot accurately with todays modern, high-powered handguns. They are also extensively tested, to ensure they are ready to withstand the crushing recoil dealt out by these hard-kicking guns. The Leupold Golden Ring is your performance guarantee.
Function & Design:
- 1/4 MOA Finger Click
- 100% Waterproof and Fog Proof
- 24K Gold Ring and Medallion
- 2nd Generation Argon/Krypton Waterproofing
- 3:1 Zoom Ratio
- T6 Aircraft Quality Aluminum
- Classic/Standard Lockable Eyepiece
- Durable Lens Cover
- Lockable Fast-Focus Eyepiece
- Xtended Twilight Lens System
Duplex Leupold invented the Duplex Reticle in 1962. Defined by it's heavy posts, which stand out against cover and in twilight conditions, pointing boldly to the intersection. Centering is a snap. The thin crosshairs obscure little.
|
SPECIFICATIONS
|
FX-2
|
|
Focal Plane
|
|
|
Magnification Range
|
2x
|
|
Objective lens diameter
|
20 mm
|
|
Tube diameter
|
25.4mm/1 in
|
|
Internal adjustment range (MOA/Mil) | |
|
Click value
|
.250 MOA
|
|
Calibrated Ranging Power
|
|
|
Parallax adjustment
|
120 MoA
|
|
Exit pupil diameter
|
|
|
Eye relief | 18 in
|
|
Field of view @100 yards
|
2x: 21.2ft
|
|
Objective outer diameter
|
1 in
|
|
Eyepiece outer diameter
|
1.4 in
|
|
Overall length (inches/mm)
|
8 in
|
|
Weight (ounces/grams)
|
6 oz / 170g
|
|
Mounting length (inches)
|
5.1 in
|
|
Front/Rear Mounting Length
|
2.6 in / 1.4 in
|
|
|
|
 |
|
 |
|
